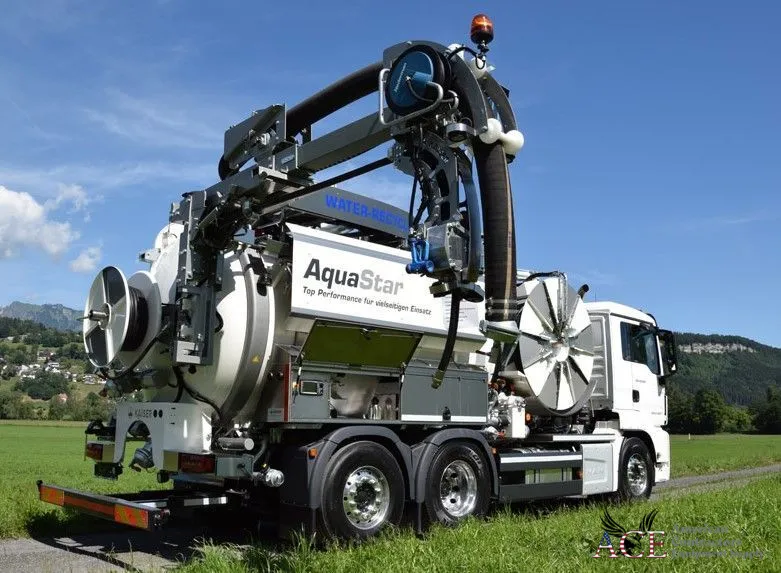

Kaiser Premier Aquastar on KW T880

Tank structure for 3-axle chassis
- Vacuum Pump chamber
- Separator tank
- Debris tank 12.8 yd3 (approx. 2,590 gallons / 9,800 liters)
- Total capacity 16.5 yd3 (approx. 3,345 gallons / 12,660 liters)
- Tank structure made of 304 stainless steel
- Tilt equipment by a multistage hydraulic tilt cylinder

Debris tank
- Debris tank 12.8 yd3 (approx. 2,590 gal / 9,800 liters)
- Tank sheet made of 304 stainless steel
- Integrated tank cleaning nozzle

Kaiser "RotoMax" water recycling system
- Single stage recycling system
- Automatic flushing system
- High and low pressure cleaning spray bars

Fresh water Capacity
- Sealing water tank 490 gal ( approx. 1,860 liter)
- Additional fresh water tank 265 gal ( approx. 1,000 liter)
- Total Fresh Water Capacity 755 gal ( approx.. 2,860 liter)
- 4” Water filling line with Camlock coupling discharge port

Full Opening rear door
- Door made of 304 stainless steel
- Kaiser Locking ring with mechanical secured lock ring cylinder
- Rotary beacon on tank cover top
- Splash shield
- Float level indicator
- Decant valve complete with Kaiser coupler
- 6” Suction and discharge port, pneumatically operated, with Camlock coupling
- Rear bumper

KAISER Vacuum pump KWP 3100i
- Liquid ring pump, hydraulically operated
- Installed in the freshwater tank/vacuum pump chamber
- Feed rate with unobstructed air-flow rate 1,850 cfm (3,100 m 3 /h)
- Max. negative pressure 25” HG (0.85 bar)
- Max. positive pressure 7.25 psi (0.5 bar)
- Pneumatically operated vacuum changeover valve for suction to pressure offload

OP 200123 KAISER high pressure pump KDU 148 – 105 gpm
- Single piston pump, hydraulically driven
- Feed rate of up to 105 gpm (400 l/min )
- Operating pressure of up to 2,900 psi (200 bar )
- Tool set for simple dismounting of water valves
- Incl. 900 ft ( 275 m ) Parker JET ESH 250 plastic 1” + 32 ft ( 10 m ) rubber leader hose 1”

High-pressure hose reel
- Automatic hose winding system
- Standard 600’ of jetting hose with 30’ leader hose
- Upgraded capacity up to 985’ (300 m) of 1” hose, or 720’ (220 m) of 1¼” hose
- Integrated Reel Drip pan mounted below the reel with drain tap

Manual reel for 130ft (40 m) ½" hose
- Capacity for 130’ of ½“ high-pressure hose
- Hand-held lance
- Suitable for fresh water operation only

KAISER 6” Combination boom KSR 73
- 6” Suction hose capacity: 52 ft (16 m)
- 38” Reach below street level without extension
- Boom arm has 25° lifting and lowering with 180° swing Extension
- 3.2 ft (1m) telescoping boom
- 6.4 ft (2 m) 6” suction tube with Kaiser couplings
- Rope drum for easy deployment and raising of jetting tools

Control system
- Wireless remote control for all truck function including remote stop of the chassis
- Communication up to 1,000’ away in line of sight
- Emergency shut off
- On-board controls and charging cradle in the passenger side toolbox
- CAN Bus control system for optimal performance
- KAISER Teleservice for remote assistance

Hydraulic system
- Hydraulic oil type Chevron Rando HD 32
- Hydraulic oil Bypass Filtration

Standard Features
- Rotary beacon – Chassis roof and rear door
- Light package – 4 spotlights on boom arm
- Side markers and reflective tap
- Stainless steel box along length of debris body, driver side
- Stainless steel box along length of debris body, passenger side, LED lighted
- Aluminium auxiliary tool box , passenger side
- Steel parts painted, pipes are galvanized
- Documentation : Hard copy ( QTY 1) and electronic manual ( QTY 1 ) included
- Vice
- Pickaxe bracket
- Signage plate, passenger side
- Signage plate, driver side
- Traffic cone holder
- Basic hand tool set for regular maintenance work
- Grease tree
- Transfer case

INCLUDED OPTIONS
OP206006 Winter package I approx. 23 °F (- 5°C)
- Circulation line as freeze protection for winter operation
OP409000 Safety and comfort package
- Manual hand and tool washing device
- Rear view camera , with 7” TFL LCD color monitor and microphone
- Light package – 2 LED wide wide-angle beams mounted on the vehicle's rear end, top
OP909040 Package “Accessories”
- Water valve case (KDU) with 2 suction valves and 2 pressure valves
- Removal device for water valves KDU 148
- Shaft guide pulley, top
- Jetting hose guide pulley, bottom
- Hand-held spotlight ,12 V / 100 W, with 32’ cable (10 m)
OP201050 Sewer flushing nozzles - 85 gpm (320 L/min)
- 1 x Grenade bomb 1”
- 1 x Clearing nozzle 1”
- 1 x Pointed nozzle, long design 1”
- 1 x BULLDOG rotary nozzle 1”
- 1 x Sewer nozzle ½”
- 1 x Pointed nozzle ½”
- 1 x BULLDOG rotary nozzle ½”

Chassis
Manufacturer - Kenworth T880, 6x4
Engine - X15 Cummins engine, 510 HP
Transmission - Allison 4500RDS Automatic Transmission Heavy duty 256 “
