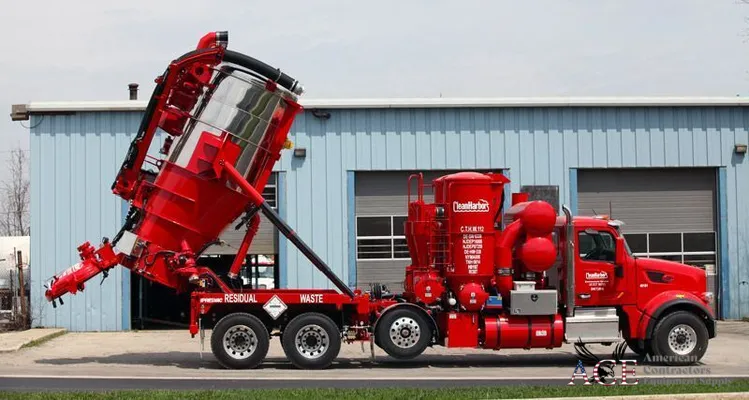

PowerVac 5300 on 2026 Kenworth T-880 with a Cummins X-15/500 HP, Allison 4500-RDS auto trans and tandem w/pusher lift axle.

MODEL: PowerVac 5300 complete with Hibon vacuum pump 5300 SCFM with vacuum to 28" mercury.

TYPE: Truck mount – Dump unit – High Dump
CODE: D.O.T. 407 / 412
________________________________________________________________________________
Capacity - 3000 U.S. gallons plus 3% outage for expansion
Head material - 5/16" Carbon steel
Shell material - 1/4" Carbon steel
Tank diameter - 78” x 54”
Tank length - 15’
Reinforcing - External exposed flat bar rings
Design pressure - 25 p.s.i. internal and 15 p.s.i. external (full vacuum)
Test pressure (hydrostatic) - 37.5 p.s.i.
Maximum allowable working pressure - 25 p.s.i.
Temperature operating range - -20 degrees F to 200 degrees F
Compartments - Single
Overturn protection - Front, middle and rear (as per D.O.T. 407 / 412)
Venting - Betts 4" stainless steel 316 vent (as per D.O.T. 407 / 412)
Top manway - 20" with wingbolt closures, offset to open when boom is in park position, 3” sampling port with coupling and cap in manway cover with vent valve
Liquid level indicator - (Western Style with Lock) Rotary float gauge with 9" stainless steel floatball, teflon seals.
Catwalk - Gripstrut material at 3 o'clock position
Ladder - Anti-skid
Handrail - Safety grab rail at tank top
Osha enclosure - For gripstrut walkway
Rear door-Wetted Parts - Full opening, top hinged, door hydraulic up and down. Grease fittings on all moving parts. Neoprene door seal. Door safety prop.
Rear door locks - Two (2), hydraulically operated. (Dry materials)
Spill pan – read door - Spill pan under rear door, from 4:00 to 8:00 o’clock position and to be about 12” out from door angle a bit down for slope, stainless steel
Twin hoist - 25 ton capacity, three stage hydraulic hoist. Full length subframe with body stops. Heavy duty hinge assemblies with grease fittings. Hoist safety prop. Power up and first stage down.
Hose trays and fenders - Combination hose trays and fenders on both sides of unit, stay down when tank lifts, drain valves in each front tray.
Mudflaps - Front and rear, anti-sail
Toolbox - One (1) 30" x 18" x 18" aluminum
Rear valves (suction) - One (1) 6" valve air operated self closing with remote control, male coupling and cap. Internal stand (riser pipe) with deflector plate. Additional 6” manual Betts valve
Rear valves (discharge) - One (1) 6" valve air operated self closing with remote control, male coupling and cap. Additional 6” manual Betts valve
Top loading port - 8" flanged port in top of rear door, with 6” wear sleeve and flange plate cover, with 45 degree angle pipe with coupling and cap
Rear bumper - hydraulic retractable - Heavy duty, meets D.O.T. 407 / 412 for valve protection. Anti-skid steps for access to rear door locks.
Vibrator - Hydraulic, mounted on heavy duty mounting channel and heavy duty tank mounting pad. Pressure relief valve and variable speed control.
Placards - Set of four (4) multi-purpose
Fire extinguisher - One (1)
Static ground - Ground cable, 25' with clamp
Working lights-L.E.D. - Three (3) two at rear, one at vacuum pump area
Flashing beacon - Top, amber rotating
Back up alarm - Audible, decibel rating 97 DBA
Running lights-L.E.D. - Vapour proof, “Truck Lites L.E.D.” with all wiring in conduit, clearance lights, reflectors, junction box with clear lens.
Vacuum blower - Hibon SIAV-8702 rotary lobe positive displacement blower (Tri lobe) Capacity 5500 SCFM.
Maximum vacuum 28” mercury. Capacity 4500 SCFM @ 15” mercury. Capacity 2500 SCFM @ 27” mercury.
Vacuum pump drive - Air engaged heavy duty NAMCO power transfer case, with rubber mounts, indiaror light on dash for tranfercase spinning
Silencers - 12" heavy duty exhaust silencer with rain cap. 12" heavy duty air injection silencer with rain cap.
Primary shut off (liquid) - Internal top 14" stainless steel floatball in 20" manway. Neoprene seat.
Isolation valves - Two (2) 8” air operated valves in 8” vacuum lines with safety shear section
Cyclones - Two (2) cyclones for 8” lines. Drop-out boxes with slanted floors for easy cleaning, 2” drain valves with fittings. Cleanout door 20” diameter. Product can be deposited into vacuum tank via drain valve.
Multi bag filtration system - Dual baghouse, stainless steel construction with continuous self-cleaning operation. Designed for dry powders with 39” diameter inspection hatch. 20” diameter cleanout door, slanted floor for easy cleaning. WET/DRY single mode operation. 58 bags 4” diameter x 60” long. Gauges in control panel to monitor baghouse performance.
Vacuum pump lines - Dual 8” to allow for maximum airflow with automatic disconnect between isolation valves and cyclones
Check valve - 12" to prevent vacuum pump back-spin
Vacuum breaker - Manual 6" quick action valve with screen guard, 6” air/electric vacuum break with wireless controls, additional pendant plug wired
Final filtration - One (1) cartridge type filter (reusable). Filter housing with quick opening door.
Auxiliary vacuum/pressure pump - Fruitland 500, 350 CFM @ free Air, 27” Hg maximum vacuum, 25 p.s.i. maximum pressure. Four way valve for vacuum and pressure. Check valve, oil catch muffler. External moisture trap with 5” stainless steel floatball and 2” drain valve. 3” air operated, stainless steel 316 isolation valve with continuous grounded vacuum lines looped to rear. No disconnecting required when dumping
Auxiliary pump drive - Air engaged 6 bolt p.t.o., hydraulic drive
Top loading boom - 8” diameter loading boom, hydraulic up and down. 270° hydraulic rotation and 4’ telescoping with hand pendant control complete with 8” isolation valve, wireless controls
Hydraulic system - Hydraulic reservoir. Vented filler cap, filter and suction strainer, sight level tube. Hydraulic pump driven from air p.t.o.. Valve bank to operate: dump body hoist, rear door/locks, and vibrator, oil pressure gauge and pressure relief valve 3/4" drain in oil tank.
Control panel - All vacuum, pressure gauges, valve control switches, temperature gauge and air pulsation baghouse cleaning switch mounted in Nema 4 control panel. Panel illumination switch for night operation.
Newson-Gale - Electronic grounding systems, with holding box for cable
Back up camera - Installed and operates in reverse
Installation - On your truck chassis
Finish - Sandblasted with two (2) coats of primer paint.
Two (2) coats of finish paint, Dupont Centari - acrylic urethane enamel, one (1) color-Black. Painting on the cab & chassis is not included in this quote
