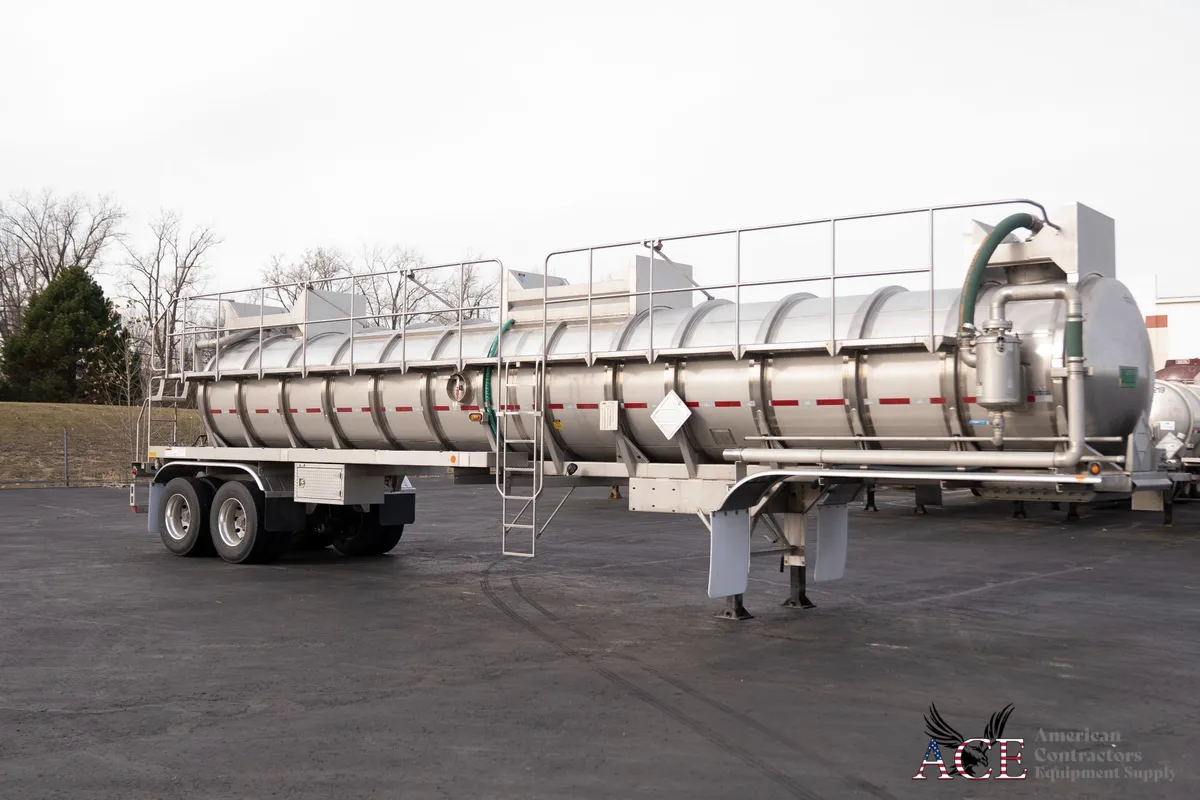

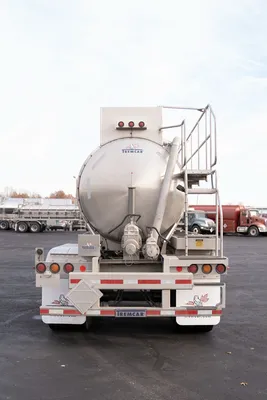

2026 Tremcar Stainless Steel 6000 USG Vacuum Tanker

1 DIMENSIONS LENGTH : 43'-4" HEIGHT : 142'' WIDTH : 96"
ALL DIMENSIONS ARE SUBJECT TO MANUFACTURING TOLERENCES
2 TYPE DOT-412 SS CHEMICAL TANKER TANDEM SEMI-TRAILER
NOTE: CANADIAN TCRN APPROVAL NOT REQUIRED
3 SHAPE CYLINDRICAL 61.50" O.D.
4 PRODUCT(S) MISC., COMPATIBLE WITH MATERIAL AND DESIGN OF TANK
LADING DENSITY 16 LBS/USG MAX

5 REGULATION DOT-412SS, MAWP 35 PSIG & FULL VACUUM, TEST 52.5 PSIG, TEMP. 200 F
ASME "U" STAMP, FOR US OPERATION ONLY

5A TRACTOR **DESIGNED BASED ON STANDARD TRACTOR SPECIFICATIONS. NOTE THAT IF CLIENT TRACTOR INFO IS DIFFERENT THAN INFO PRESENTED BELOW PLEASE INDICATE IN CHART BESIDE**
WHEEL BASE: 210 INCH INCH
TANDEM TIRE SPREAD: 55 INCH INCH
5TH WHEEL HEIGHT: 49 INCH INCH
FRONT AXLE WEIGHT: 10,000 LBS LBS
TANDEM WEIGHT: 8,000 LBS LBS

B A R R E L
6 COMPARTMENT(S) 1
7 CAPACITY 6,000 USG FULL SHELL
8 INNER SHELL STAINLESS STEEL GRADE : 316/316L THICKNESS: 0.184"
FINISH : 2B
WELD FINISH : W-3
LENGTH : 456"
9 HEADS STAINLESS STEEL GRADE : 316/316L
THICKNESS: 0.250"
FINISH : HRAP
WELD FINISH : W-3
TYPE : TORISPHERICAL
OUTSIDE FINISH: SPIN POLISH

10 BAFFLES NONE
11 HEAT EXCHANGE SURFACE NONE
12 SUMP 1 6" SS316 PIPE WITH ANSI FLANGE AT REAR

1 4" SS316 INVERTED MOUNTING PAD AT TOP CENTER OF TANK INSIDE SPILLDAM NEAR #2 MANWAY
13 MANHOLE(S) 3 BETTS 8350-LCX, 50 PSIG, ASME U STAMP, 20" OPENING WITH WHITE HYPALON GASKET

MANHOLE #1 AT FRONT RAISED FOR PRIMARY SHUTOFF
MANHOLE #2 LOCATED APPROXIMATLY AT CENTER (HINGED TO FRONT)
MANHOLE #3 LOCATED AT REAR (HINGED TO FRONT)
SEALS : YES
14 CLEAN OUTS NONE
S T R U C T U R E
16 REINFORCING RINGS 14 STAINLESS STEEL TOP HAT FULLY WELDED TO BARREL
17 SHELL SUBFRAME STAINLESS STEEL CROSSMEMBERS AND OUTRIGGERS, 3/16" SILLS FRAMELESS
18 INSULATION NONE
19 OUTER SHELL NONE
C E N T E R C A B I N E T
20 TYPE OF CABINET NONE
21 PIPING 316L 6" SCH40
21A LOAD LINE 1 4" PIPED FROM CURBSIDE REAR LOADING AREA TO INSIDE MANWAY #2 SPILLDAM (NEAR CENTER)
MANHOLE #1 1-PRIMARY 1 PRIMARY SHUTOFF INSTALLED IN FRONT MANHOLE
SHUT OFF WITH REMOVABLE BASKET, 6'' STAINLESS STEEL FLOAT BALL
3" AIR OPEN/SPRING CLOSE ISOLATOR VALVE WITH SS DISC & TEFLON
SEAT. 3" SS ELBOW ON TOP OF VALVE WITH ELBOW FACING TO SECONDARY
AND TERMINATING WITH 3" STAINLESS ADAPTOR

2-SECONDARY 1 STAINLESS STEEL SECONDARY WITH 6" SS FLOAT BALL INSTALLED ON CURBSIDE FRONT.
SHUT OFF EASY ACCESS DESIGN, REMOVABLE LID, HEAVY DUTY WING NUT FASTENERS AND SS

BALL DRAIN VALVE. 3" 90° SS ELBOW WITH HOSE BARB END
2 4"GLYCERINE FILLED ANTI-SHOCK PRESSURE/VACUUM GAUGE
LOCATIONS: ONE INSTALLED ON TOP OF SECONDARY, ONE INSTALLED AT REAR HEAD
REAR HEAD GAUGE CONNECTED TO SUPPLY LINE FROM FRONT GAUGE, INSTALL IN CABINET
WITH REAR VALVE FLIPPER SWITCH

3-HOSE 3" CHEMICAL GATES MUSTANG 45HW PRESSURE/VACUUM HOSE CONNECTED FROM PRIMARY TO
SECONDARY WITH CAM LOCKS. LINE FROM SECONDARY TO BE SOLID AND FINISH WITH
A 450 ELBOW AND MALE CAMLOCK ADDAPTOR POINTING CURBSIDE
NOTE: ALL PIPING/HOSES/CONNECTIONS FROM PRIMARY - SECONDARY - PUMP AREA MUST BE 4"
22 VALVE(S) 1 BETTS SV866SSTS MANUAL KNIFE VALVE STSTL316 6'' ANSI FL / THREAD AT REAR OUTLET
1 BETTS #SV756SSTS GATE VALVE AIR OPEN/SPRING CLOSE STSTL316 6'' ANSI FL / FL
WITH REMOTE ACTUATOR WITH EMERGENCY CUTOFF
1 BETTS INVERTED 4" x 4" EV46227SSTS STAINLESS STEEL AIR OPERATED EMERGENCY VALVE WITH FLANGE
FACING TO CURBSIDE. VALVE OPERATOR LOCATED AT CONTROL PANEL. EMERGENCY CLOSURES AT
DRIVERSIDE FRONT FENDER AND CURBSIDE REAR HOSETRAY. SHEAR SECTION ON VALVE
1 BETTS 4'' #SV864SSTS MANUALLY OPERATED SLIDING KNIFE VALVE INSTALLED ON
LOAD LINE AT REAR

23 OUTLET FITTINGS 1 6" STAINLESS STEEL FLANGED ADAPTOR AND CAP WITH KEEPER WIRE
1 DIXON SS 6" COUPLER X 4" ADAPTER WITH 4" CAP WITH KEEPER WIRE
SEALS : YES
24 PUMP INSTALLATION NONE
24a PUMP PLATFORM 1 REAR OF LANDING GEAR REINFORCED
26 HYDRAULIC LINES 2 STAINLESS STEEL LINES, 1" FOR THE PRESSURE AND 1.5" FOR THE RETURN, ON CURBSIDE FROM
FRONT BACK TO APPROX. #5 RING. FRONT AND REAR OF LINES TERMINATE WITH MALE NPT THREAD
FOR CUSTOMER INSTALLATION OF COUPLINGS
28 LEVEL INDICATOR 1 8'' STAINLESS STEEL NVE 400-320-8SW FLOAT LEVEL INDICATOR INSTALLED
AT REAR HEAD OFFSET TO DRIVERSIDE, NEAR HORIZONTAL CENTERLINE
ARROW IS TO BE RED FOR MAXIMUM VISIBILITY & LABELLED "E" FOR EMPTY AND "F" FOR FULL
NOTE: INSTALL FLOAT ARM HANDLE ON LEVEL GAUGE

T O P O F T H E T A N K
43 MANHOLE BOX 1 DOT SPLASHBOX WITH ROLLOVER PROTECTION AT CENTER MANWAY (#2)

1.5" DRAIN HOSE ON BOTH SIDES WITH SEPERATE FLOOR.
ROLL OVER PROTECTION WITH NO SPLASHBOX AT MANHOLE 1 AND 3
44 VENTING 1 DOT-407 PRESSURE "SUPER" VENT 3" NPT FORT VALE #R408/14200
MAWP 35 PSIG, TEST 52,5 PSIG, WITH TEFLON O'RING SEAT
INSTALLED ON 3" NPT NIPPLE
REAR OF MANHOLE OFFSET TO CURBSIDE (#2 MANHOLE)
C/W STAINLESS STEEL BALL VALVE, PRESSURE/VACUUM GAUGE (30" HG @ 60 PSIG) LIQUID FILL
AND STAINLESS STEEL CHICAGO COUPLER WITH CAP AND KEEPER WIRE
( 3/4" CONNECTION )
SEALS : NO
45 VACUUM BREAKER NONE
46 AIR UNLOAD LINE NONE
47 CATWALK 1 11.75" WIDE STAINLESS STEEL DIAMOND GRIP, FROM FRONT ROLL OVER OF FRONT MANWAY

TO REAR ROLL OVER OF REAR MANWAY AT 3 O'CLOCK POSITION

50 LADDER 1 STAINLESS STEEL 1" TUBE WITH ( 1 LINE ) GRIP STRUT RUNGS, PLATFORM STEPS
AND 1.25" DOUBLE RISERS ABOVE WALKWAY BOLTED ON SUPPORTS LOCATED
NEAR CENTER ON CURBSIDE
1 ADDITIONAL LADDER AT CURBSIDE REAR TO ATTACH AT REAR MOST OF CATWALK
51 SAFETY RAILING 1 STAINLESS STEEL FIXED HANDRAIL FULL LENGTH OF 3 O'CLOCK WALKWAY
S U S P E N S I O N
52 SUSPENSION BOGIE STAINLESS STEEL, 12" HEIGHT
53 TYPE OF SUSPENSION 2 INTRAAX AANT23K, 23 000 LBS, 15" R.H. WITH S.S. HANGERS AND BLACK SOFT COAT

SPREAD: 49"
54 SUSPENSION - AIR LIFT NONE
55 CONTROL SYSTEM 1 HENDRICKSON HEIGHT CONTROL # AKH134-3 WITH MANUAL DUMP
VALVE # AK147-1 IN A STAINLESS STEEL BOX ON REAR SUBFRAME
***USE SS LATCHES IN LIEU OF RUBBER TABS***

56 AXLES 2 INCLUDED WITH SUSPENSION, 23 000 LBS, 71.5" TRACK, WELD-ON SPIDERS,
SAME INNER AND OUTER BEARINGS, ABS BLOCKS, NO DUST SHIELDS AND
TIREMAAX PRO PREPPED ONLY.

57 OIL SEALS 4 INCLUDED WITH INTRAAX (HXL5 HENDRICKSON EXTENDED-LIFE SYSTEM) SEMI-FLUID GREASE
58 BRAKES LINING: KNORR/BENDIX ADB22X

BRAKE CAPACITY: BX276
BRAKE CHAMBER: BENDIX 18/24
ROLL STABILITY SYSTEM: MERITOR-WABCO RSS PLUS 4S/2M
ABS SENSOR LOCATION: ON AXLES (FRONT TO REAR):1-2
ABS INDICATOR LIGHT: DRIVER'S SIDE, AT STANDARD LOCATION AS PER REGULATION
AIR TANKS: ALUMINUM WITH CABLE DRAINS
59 HUB & DRUM 4 HUB PILOTED, DURA-LIGHT (ADI) HUB, 10 STUDS

WITH ABS TONE RINGS

60 RIMS 8 WSTAR USA ALUMINUM DISC, HUB PILOTED 10 HOLES, 8.25" X 22.5"

ALL RIMS POLISHED FINISH

61 TIRES 8 TREMCAR OEM STANDARD TIRES 11R22.5"X 8,25''
NO TIREMAAX PRO SYSTEM INSTALLED BY TREMCAR

62 HUBDOMETER NONE
63 LANDING GEAR 1 JOST AX150T1-17, 10" x 10" SAND SHOE WITH CRANK ON DRIVER'S SIDE

STAINLESS STEEL FRAME

64 TIRE CARRIER NONE
65 KING PIN PLATE 1 TREMCAR, BOLTED, ADJUSTABLE @ 2"
67 BUMPER 1 4" X 4" FOR REAR IMPACT GUARD ACCORDING TO NHTSA
4" X 8" SPLIT RSPA REAR END PROTECTION
STAINLESS STEEL TUBING
70 FENDERS STAINLESS STEEL ROLLED TYPE
WITH STAINLESS STEEL SUPPORTS
1 PAIR FRONT FENDER
1 REAR INCORPORATED TO THE HOSE TRAY

A C C E S S O R I E S
71 SIDE CABINET 1 STAINLESS STEEL UTILITY CABINET NON INSULATED, 42" X 24" X 24" EXTERNAL SS CAM & BAR

STYLE HARDWARE LOCATED CURBSIDE AHEAD OF FRAME

72 HOSE CARRIER 1 STAINLESS STEEL HOSE TRAY FULL WIDTH X 6" HEIGHT X 21' LONG WITH
1.5" STAINLESS STEEL BALL VALVE DRAIN AT REAR LOCATED ON CURBSIDE

73 PLACARD HOLDERS 4 ALUMINUM SLIDE-IN, PLACARD ATTACHED TO BRACKET
74 THERMOMETER ON TANK NONE
75 NOSE BOX 1 TREMCAR 7 WAY SAE-J560 , LOWER QUADRANT OFFSET DRIVER'S SIDE WITH
ABS-BLUE, CLEARANCE/MARKER-BROWN ACCESSORY-BLACK PIN
76 LIGHTS LED GROTE NEXGEN GROMMET MOUNT LIGHTS, EXPOSED WIRING,
ULTRA-BLUE-SEAL WIRING WITH MAINTENANCE FREE 7 YEARS WARRANTY
SIDE CENTER MARKER LIGHTS WIRED TO FLASH WITH TURN SIGNALS
NO BACK-UP LIGHTS
1 LED WORK LIGHT WITH SWITCH ON REAR LADDER POINTING IN DISCHARGE AREA
1 LED WORK LIGHT WITH SWITCH ON STRUCTURE POINTING IN PUMP AREA
NOTE: WORK LIGHTS WIRED TO BROWN WIRE

77 LIGHT BOX 2 STAINLESS STEEL BOX, BOLT ON, 3 HOLES MODEL (RED / AMBER / RED)
78 REGISTRATION HOLDER 1 PS-1 ON LANDING GEAR FRAME ON DRIVER'S SIDE
1 ALUMINUM TUBE ON FRONT FENDER DRIVER'S SIDE

79 MUDFLAPS TREMCAR
81 PAINT FRAME: N/A
RIMS: N/A
82 CALIBRATION 1 PAPER CHART 1/4" INCREMENTS

1 STAINLESS STEEL CHART 1/4" INCREMENTS TO USG LOCATED CURBSIDE NEAR LADDER

83 PASSIVATION NONE
84 MISCELLANEOUS 1) CONTINUOUS CONSPICUITY TAPE ON BARREL, BUMPER AND REAR HEAD
2) STANDARD THREE YEAR WARRANTY ON ALL TREMCAR PARTS AND WORKMANSHIP
86 SPECIAL NOTICE -THE PRICING PRESENTED IS IN GOOD FAITH AND VALID AT THE TIME OF SUBMISSION.
GIVEN CURRENT AND ONGOING GLOBAL POLITICAL CIRCUMSTANCES, TARIFFS
ARE IMPACTING THE GLOBAL METALS MARKET AND ARE GIVEN CONSIDERATION
IN OUR PROPOSAL FOR RAW MATERIALS AND COMPONENTS MANUFACTURED OF
STEEL, STAINLESS STEEL AND ALUMINUM. IN THE EVENT THAT THESE TARIFFS
AND MARKET PRICES FLUCTUATE BETWEEN TIME OF ORDER AND ENTERING
PRODUCTION (INCREASE OR DECREASE) TREMCAR WILL ADJUST THE PRICE
ACCORDINGLY. VENDOR COMPONENT INCREASES WILL BE EVALUATED AT TREMCAR'S
DISCRETION AND WILL ALSO BE PRESENTED 120 DAYS PRIOR TO PRODUCTION FOR
ACCEPTANCE OR REJECTION WITH MUTUAL CANCELLATION OF THE ORDER
-TREMCAR TRAILERS ARE SUBJECT TO A CONTINUOUS IMPROVEMENT PROGRAM. TREMCAR
RESERVES THE RIGHT TO CHANGE PRODUCT SPECIFICATIONS AT ANY TIME WITHOUT
NOTICE OR OBLIGATIONS
