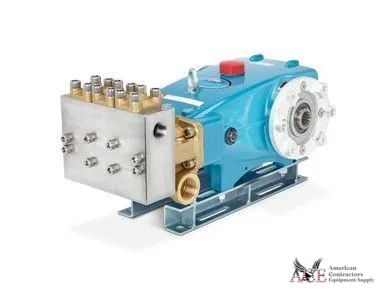

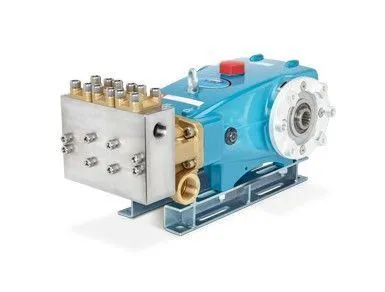

This triplex (three-plunger) positive displacement reciprocating pump features a forged brass inlet manifold and a 316 stainless steel block-style discharge manifold, along with 304 stainless steel valve assemblies, solid ceramic plungers, and standard NBR (Buna-N) seals and O-rings.
Its 14-tooth hollow spline shaft is designed to mate with either 2- or 4-bolt SAE C hydraulic motors, helping reduce the overall width of the pump-and-motor assembly compared to traditional shaft configurations.

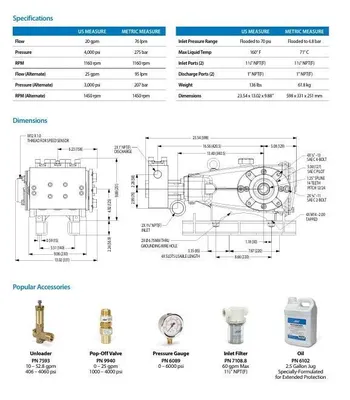

Max Flow - 20 gpm / 76 lpm
Max Pressure - 4000
Inlet Port Size - 1 1/2" NPT(F)
Discharge Port Size - 1" NPT(F)
RPM - 1160
Drive Type(s) - Direct
Material - Brass
