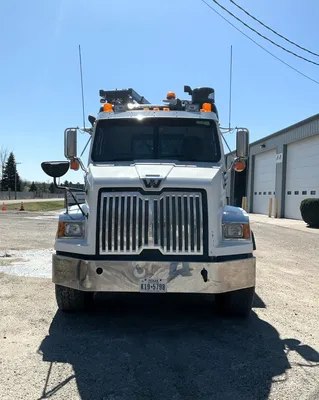

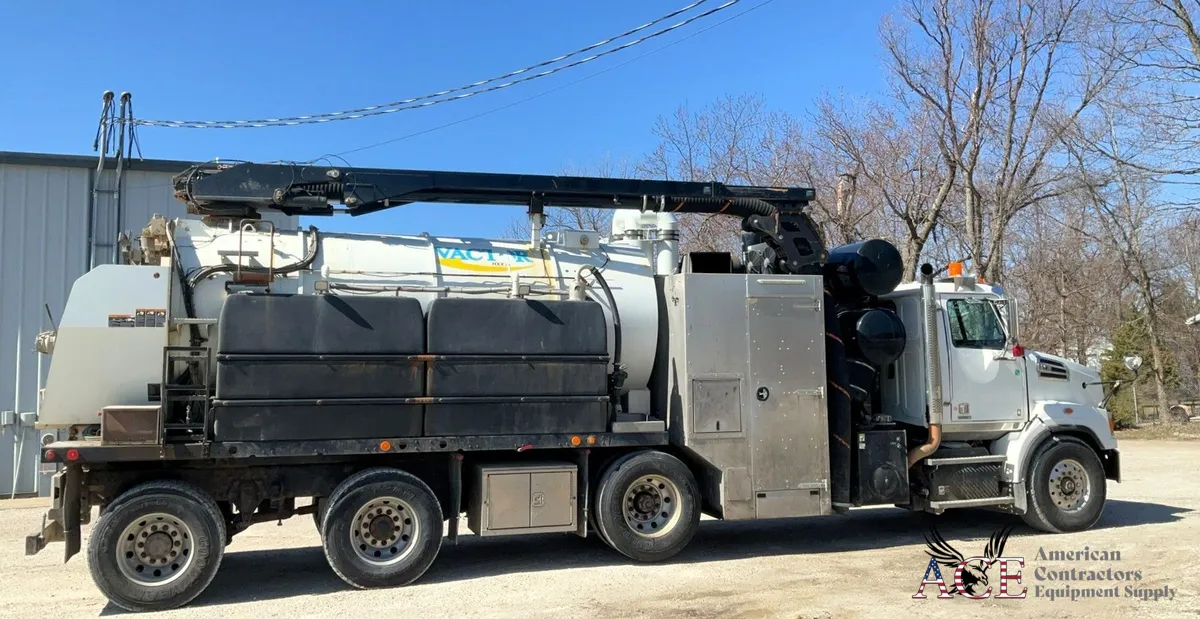

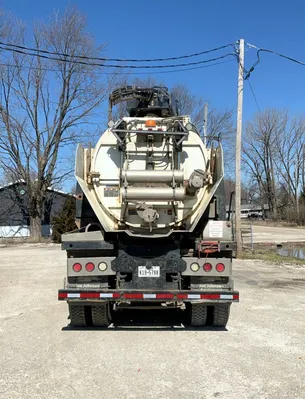

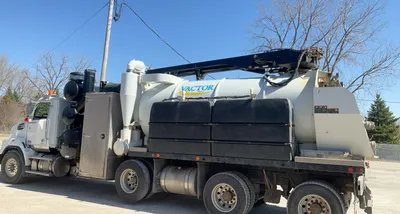

2020 Vactor HXX-QX on a Western Star 4700SB 8X4

Vactor HXX-QX Vacuum Excavator
Vactor's Patent Pending DigRight Technology
Rear Door Prop and Debris Body Pro
15 Cubic Yard Debris Body
Robuschi RBDV 145 Blower - 6,200 CFM - 28" Hg.
Mud Flaps
Sealed Electrical System w/Weather Tight Connectors
Dual Cyclone Filtration
Hydraulically Raising Debris Body W/50 deg. Dump Angle and Double
Acting Debris Body Lift Cylinder
2"Y-Strainer on Water Tank Fill
1/4" Application Specific EX-TEN Steel Construction
Heavy Duty OMSI Transfercase
2- 19.65" Dia. Washable Polyester Final Filters w/Foam Prefilter - Micron Filtration
Hydraulic Boom Extend/Retract, Up/Down, and Rotation Controls via
Wireless Remote, Manual Valves, and Optional Pendant
Unit Manufactured in an ISO 9001:2008 Quality Management Certified Facility
Unit Manufactured in an ISO 14001:2004 Environmental Management Certified Facility
Electronic Low Water Light and Alarm
3/4 Opening Flat Rear Door w/Hydraulic Open/Close and Lock
8"ID Vacuum System 1
1/2" x 75' Water Digging Hose on Manual Extend/Spring Retract Reel w/Retract Speed Control
8"Air-Operated Vacuum Relief Valve
Electronic Back-Up Alarm
3"Camlock Water Tank Drain Connection
2"Camlock w/25' Hydrant Fill Hose and Connection
Water Proof IP67 Rated Wireless Remote Control w/ Display Screen

20GPM @ 3,000 PSI CAT Pump Variable Water Flow, TRIPLEX, Water Pump
Debris Body Deflector
2- 10" Dia. Stainless Steel Float Shutoff Balls
Digging Lance Storage
Vactor's Emergency Stop at all Human Machine Interface
Vactor's Safety Interlock System and Transfercase Shift Protection
12Volt Plug In Power Source at Control Stations
User Defined Control of Work Mode Operation
J1939 CAN Electrical Communication and Engine/Transmission/Vactor
Interface - includes Vactor Diagnostics and Warnings

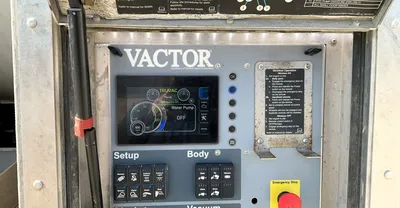

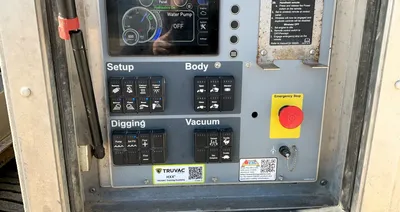

Illuminated Curbside Control Station Featuring:
Vactor E-Stop, Water Pump On/Off Control, Vacuum On/Off Control, and Optional Electric Vibrator Control
7" LCD display of Engine RPM, Blower RPM, Vacuum Level, Pump Mode, Dig Mode
Bluetooth Remote Service Connectivity
Solid State Electronic Control System
Exterior LED Lighting Illuminating for Operator Control Work Area and Walk In Cabinets
1,200 U.S. Gal Water Capacity - Molded High Density Polyethylene Water Tanks with Anti-Siphon Fill
Rear Door Drain Port Cover - 3:00
Digging Lance Excavation Package w/Quick Connect Couplers. Includes:
(2) - 6' Long and (1) - 4-1/2' long 1/2" Dia. Galvanized Extension with (1) Linear Trigger Handgun Shuto
Nozzle Storage Rack
Grounding cable to tie debris body, sub frame, and chassis
8" Inspection Port In Turret W/Ladder Access
Rear Door Splash Shield
QuietPak Acoustically Tuned Silencer Package
Hydraulic Tank Shut-Off Valves for Ease of Service
High Pressure Wash-down Gun w/Adjustable Spray Nozzle
2Amber LED Clearance Markers
2Red LED Clearance Markets (1 Passenger Side Rear and 1 Driver Side
3Red LED Rear Mounted Identification Lights - Top of Rear Body
8" Vacuum Pipe Package (1 x 80" 8" Dia. Dig Tube, 1 x 72", 1 x 36" 8" Dia.) w/Quick Clamps
Aluminum Tool Tray - Driver Side Between Cabinet and Water Tank - 21" W x 24" D
Aluminum Tool Tray - Passenger Side Between Cabinet and Water Tank - 21" W x 24" D
Large Van Body Style Aluminum Water Pump Cabinet w/Foil Backed Insulation.
Passenger Side, Rear Mounted Electric over Hydraulic Control Valves with Manual Override and Hand Pump
Module Paint, DuPont Imron Elite - Sanded Primer Base 1
All Painted and Powder Coated Components are Sand Blasted for Proper Adhesion Prior to Finishing
Debris Body Painted Customer Colors per Vactor's 5 Stage Paint Process
Rear Door Decant Valve - 6" Knife Valve w/Camloc, 6:00 position
Lube Manifold for L/R Rear Door Cylinder Hinge, L/R/M Rear Door Hinge, Boom Bearing, Liquid Level Indicator, Upper and Lower Body
Hoist Cylinder Pins, and Boom Cylinder Pins
Debris Body Vibrator, Electric
Air Purge
Water Heater, 800,000 BTU's - 12V
9ft Extendable Boom, 320 deg. Rotation w/Removable Turret Box. 26.5'
Full Extension Boom Reach from Center of Turret Box
Remote Corded Pendant
Anti Freeze Tank and Plumbing
Cold Weather Package Insulation of All Exposed Water Lines, Heating of Water Pump Cabinet
Revolving LED Beacon, Front Federal Signal SLR Series, Amber
Revolving LED Beacon, Rear Federal Signal SLR Series, Amber
Worklights (2), Boom
Work Zone Lighting, (6) LED Lights
Aluminum Toolbox, Passenger Side, 24" H x 36" W x 24" D, Frame Mounted
Driver Side Van Body Style Vertical Aluminum Storage Cabinet w/Walk-in Access, Foil Backed Insulated w/Heater
