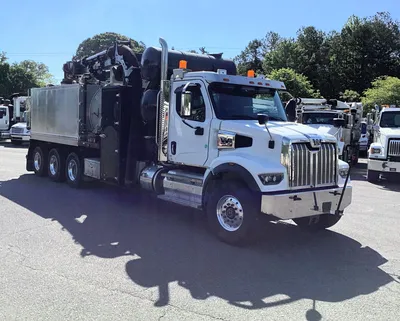

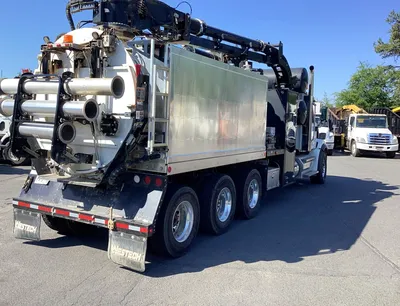

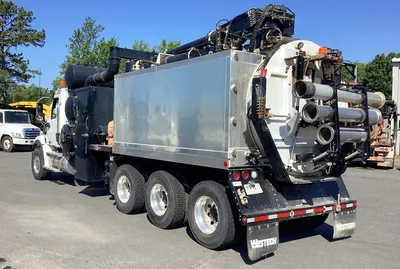

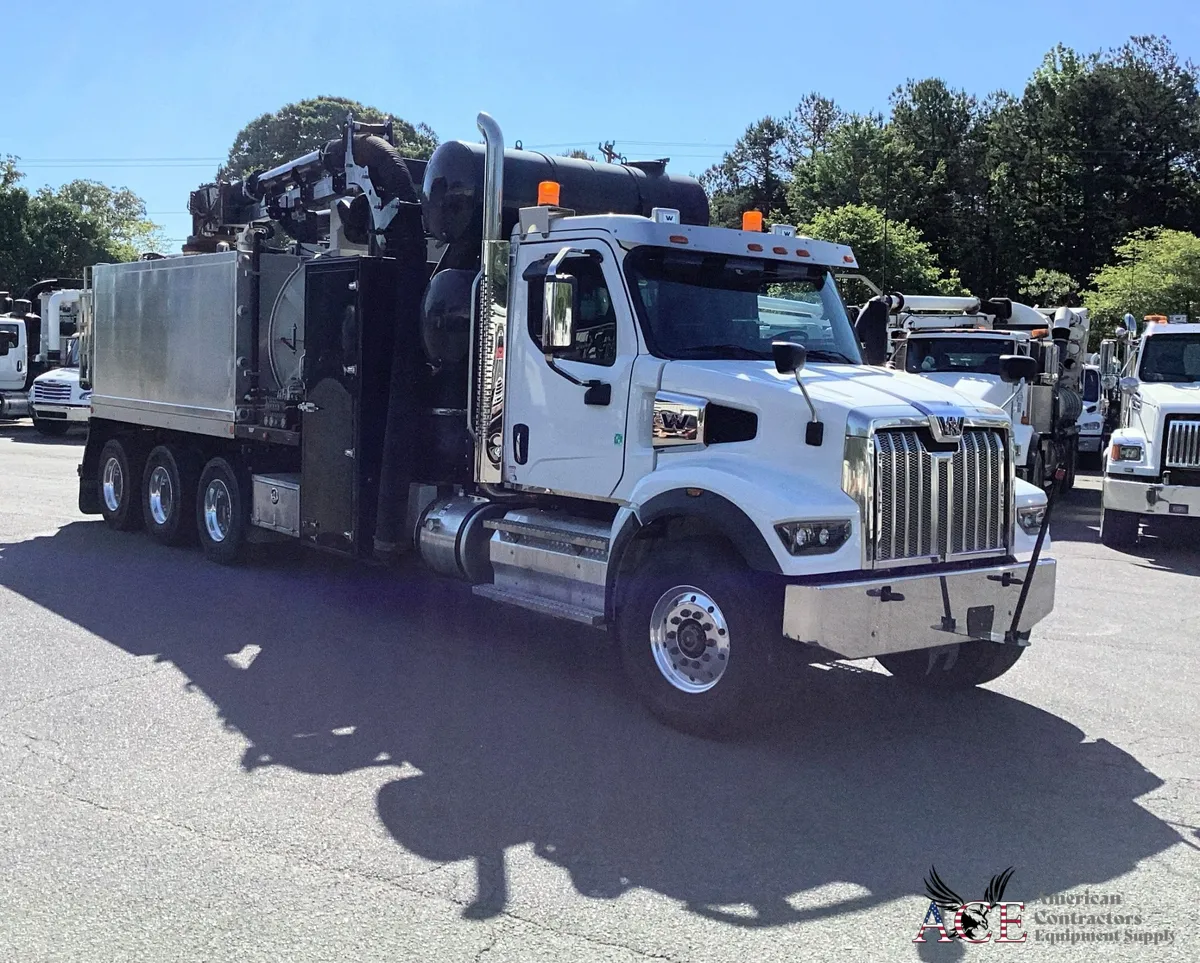

2025 Western Star 47X Tri-Drive, Westech Wolf Hydro Excavator

Transfer Case Driven Hibon 8702 - 5250 CFM / 28" Hg. Tri drive
14 Cubic Yard Steel Debris Tank
Hydraulically Operated Hoist 120 DA For Offloading Debris Compartment
Hydraulically Operated 3/4 rear door
811 Inspection Port in Boom Turret
Hydraulically Operated Wash System
Wireless Remote Control for Boom
Transfer Case for Blower Operation
Twin Cyclone Separators c/w Collector can
Side Mounted Aluminum Water Tanks - 1400 US Gallons
(1) Cross cabinet 34"D x 102"W x 91"H c/w Single Heater P/S. for Wash
Wash System Air Purge Blow Down
Wash System Includes standard Wash Gun
Digging Lance Package w/Quick Connects. 1@ 6' and 1 @4' w/trigger assembly
Reach Pole for Rear Door Safety Prop
ISO32 Hydraulic Oil
Federal Signal Back-Up camera
Lay flat Fill hose - 2" camlock Fill - Hydrant Adapter
Garment Hook Brackets in D/S Cabinet
8" Air Actuated Vacuum Relief
4" Manual Vacuum Relief
(2) ANSI Compliant Fall Arrest Anchor Points on Boom
steel Final Filter Lid and Drop box lid
Hydraulic Overheat Alarm and Light Indicator
Chassis Glycol Boost Pump
20 LB Fire Extinguisher
(2) LED Boom Work Lights LED Taillights, Stop/Turn/Tail
Federal Signal Beacon Strobe (FSUltrastar) Rear Door 2Interior Corner Lights Driver and Passenger
cabinet Exterior LED Work Light- Passenger Side cabinet Exterior LED Work Light- Driver Side cabinet
Glycol Heated Water Suction Line Plumbing
20 GPM@3,000PSI CAT3560 Water Pump (1/2" x 75' Pressure Hose)
QuickConnectsFor Dig Nozzles
Glycol system for wash system
Boiler Upgrade to 800,000BTU· 12Volt
Low Water Alann w/light c/w Alarm Silence and Vac Relief Indicator
Water Sight Eyes• (4) Front and Rear P/S Tank
Boiler Exhaust Hood
Auto-Open Boiler Intake Air
Wrench Rack
Aluminum Cross cabinet w/insulated Wall Panels
Driver Side Cross cabinet Heater 4 Glycol Heat and Insulation
Electric Debris Body Vibrator
Fold Down Piperack Rear Door w/Vactor Twist Handle
Rear Door Decant Valve-6· Knife Valve w/camloc, 6:00 position
6. Drain Point Mounted at 3:00 Position of Rear Door and capped
Centralized lube Manifold for Boom and Rear Door Functions
Boom w/ S-Steel Tube Center Section and 10• Hose to Turret
Wired Pendant Control for Boom Functions
Slide Out, Quick Boom Vacuum Tube Storage Bracket
Cabinet/Toolbox Options Frame Mounted 36" Toolbox W/Single Drop Door
Pylon Holder/Safety Cone Holder Non-Code Straight Bumper
Hydraulic Tool Circuit (17GPM/2500PSI) Grounding Cable4 1/8" Diameter 4 Wrap Style
Grounding Stud 4 Front and Back CSA Threaded Hydrant fill Adapter
