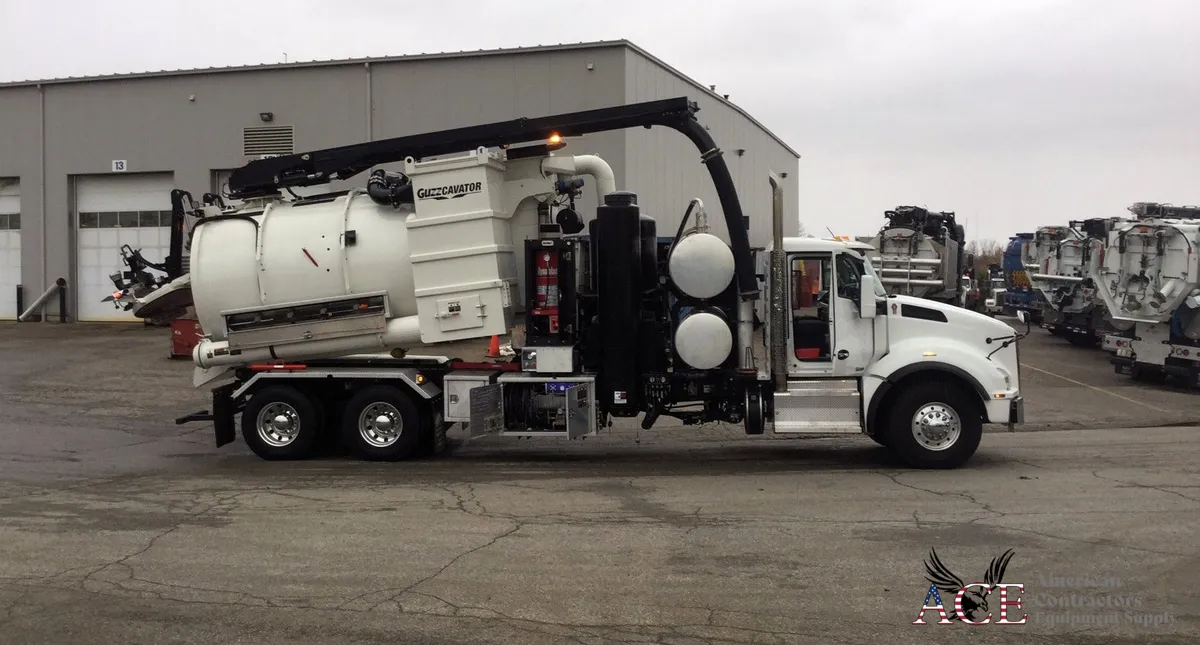

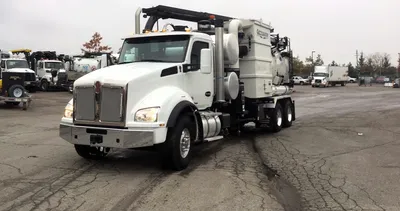

2020 Guzzler Guzzcavator on Kenworth T880 Manual

XXS4116TC Guzzcavator, Hibon 8702-2T Vacuum, 16 Yard Debris
Ultra Quiet Blower Exhaust Silencer
Direct Drive OMSI Transfercase with Air Shift
60 Bag Filtration w/Air Cannon
Wet and Dry Operation – No Changeover Required, Single Mode
(2) 9" SS Liquid Level Float Ball Shutoffs
Hydraulic Rear Door – (2) Wedge Locks
Hydraulic Rear Door Locks w/Hydraulic Open/Close
Blower Discharge Temperature Gauge
Remote Pendant Control with 55' Cord
Electric Back-Up Alarm
16 Yard Payload Capacity
8" Air Operated Vacuum Relief Valve
4" Manual Vacuum Relief Valve/Air Inlet Valve
Electric Vibrator – Heavy Duty
Rear Door Platform
8" Top Inspection Port
Float Level Indicator
6" Flanged Decant Connection, Bottom Center
Radial Diversion Wing
Right Start Program
6" In-Line Safety-Tee Vacuum Relief Valve w/Tether Line
Hydraulic Oil Tank w/Sight Gauge
ISO 46 Hydraulic Oil
Weather Tight Control Panel Box
Bag House/Cyclone Chamber Dump Tubes w/Full Opening Doors
Bag House/Cyclone Chamber Side Access Cleanout Doors
Color Coded/Function Stamped Wiring Harness
Color Coded Air Lines w/Push Lock Fittings
Fire Extinguisher and Safety Triangles in Cab
PTO Driven Constant Pressure Hydraulic Pump
Transfercase Shift Protection System
Rear Door Safety Prop
Debris Body Safety Prop
Rear Door Vacuum Port, 45° Elbow, Standard
600 Gallon Aluminum Fresh Water Tank
10 GPM @ 2500 PSI Water System, Cat
Wireless Remote w/Water Pump Controls, Vacuum Relief
MultiFlow Water System
75' Retractable Handgun Reel – Upgraded to 100' Hose
2" Water Tank Drain
2-1/2" Cam-Lock Water Tank Fill
Hydrant Wrench
Digging Lance Package w/Trigger Shut-Off
8" Vacuum Tube Package w/8" Dig Tube
2" Cam-Lock Discharge Silencer Drain
2" Cam-Lock Final Filter Drain
Grounding Cable to Debris Body, Sub Frame, and Chassis
Low Water Light w/Alarm
Heavy Duty Boom Flange
Top Loading Port (8") at Rear
8" 7' Telescoping Rotating Boom, 270° Rotation with Removable Turret Box
25' Grounding Cable
Catwalk and Fold-Down Handrails for Debris Body
Hydraulic Tank Shutoff Valves
Camera System – Rear Only
Rear Door Splash Shield
Strobe Light, LED, Rear, Federal Signal, Amber
Work Zone Lighting – (8) LED Lights
(2) Boom Mounted Work Lights, LED
Sludge Pump Off-Load System – 4"
Telescopic Boom Elbow, Standard
Air Purge
Transfer Case Install
Toolbox, Passenger Side Chassis Frame, 24"W x 24"H x 24"D
Rear Door Decant Valve – 6" Brass Manual Gate Valve
4" Sludge Pump Located at Lowest 6 O'Clock Position on Tailgate; Pneumatic Open/Close Valve Located on Passenger Side
Weather Tight Control Panel Box – Passenger Side Mounted
Float Level Indicator Located on Passenger Side
All 8" Vacuum Tube Package Converted to Vactor Flange Style in Place of Band Lock
Red Rubber Lined Hose with Vactor Flange Ends on Boom Assembly
All Factory Aluminum Wheels on Kenworth Chassis
Program Foot Pedal and Cruise Control to 75 MPH
Boom Controls Located on Control Panel Like HXX Units on Passenger Side
