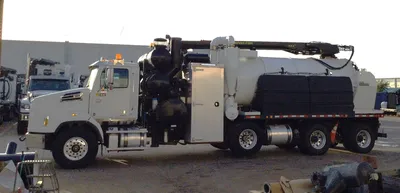

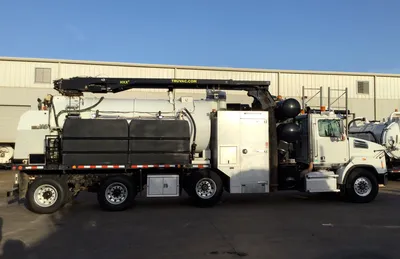

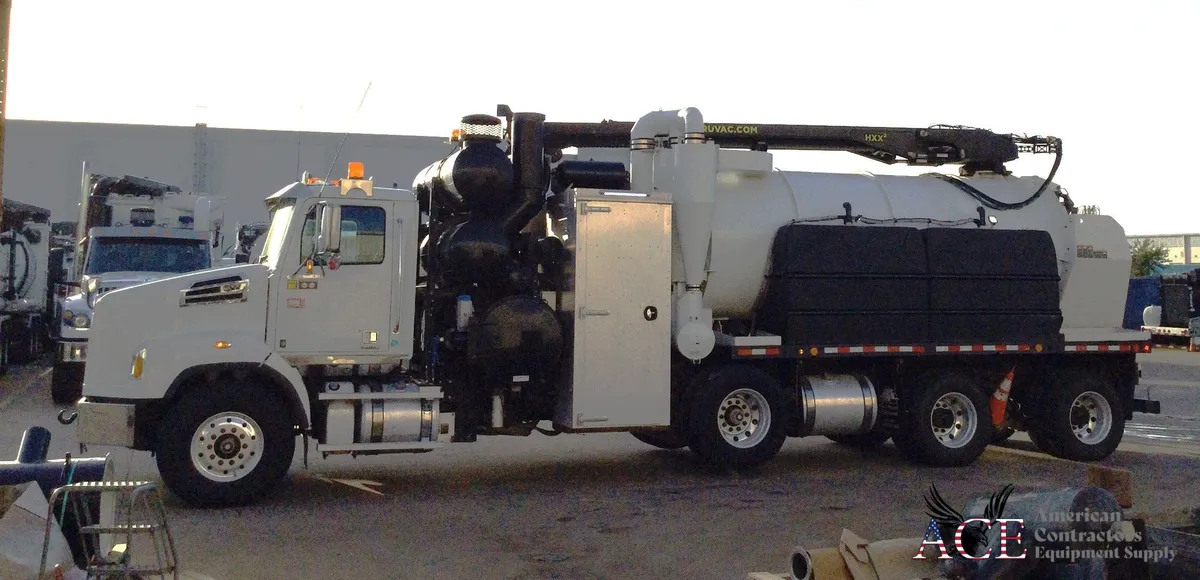

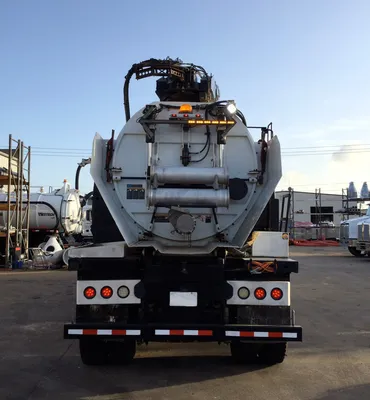

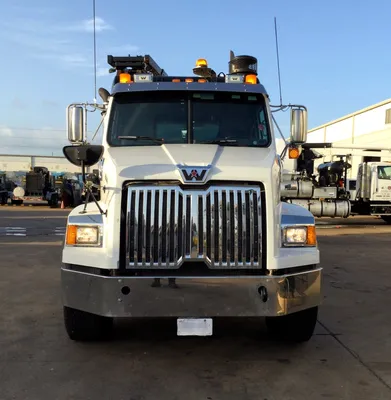

2020 Vactor HXX-QX on 2020 Western Star 4700
Have one to sell?
ConditionUsed
1 available
2020 Vactor HXX-QX Hydro Excavator on Western Star 4700 with Detroit DD13 engine, 15 cu yd capacity, 59200 miles. Features include 9' extendable boom, robust blower, dual filtration, and advanced controls for efficient operation.
Vactor HXX-QX Vacuum Excavator
Vactor’s Patent Pending DigRight Technology
Rear Door Prop and Debris Body Prop
15 Cubic Yard Debris Body
Robuschi RBDV 145 Blower – 6,200 CFM – 28" Hg
Mud Flaps
Sealed Electrical System w/Weather Tight Connectors
Dual Cyclone Filtration
Hydraulically Raising Debris Body w/50° Dump Angle and Double Acting Debris Body Lift Cylinder
2" Y-Strainer on Water Tank Fill
1/4" Application Specific EX-TEN Steel Construction
Heavy Duty OMSI Transfercase
2 – 19.65" Dia. Washable Polyester Final Filters w/Foam Prefilter – 5 Micron Filtration
Hydraulic Boom Extend/Retract, Up/Down, and Rotation Controls via Wireless Remote, Manual Valves, and Optional Pendant
Electronic Low Water Light and Alarm
3/4 Opening Flat Rear Door w/Hydraulic Open/Close and Lock
8" ID Vacuum System
1/2" x 75' Water Digging Hose on Manual Extend/Spring Retract Reel w/Retract Speed Control
8" Air-Operated Vacuum Relief Valve
Electronic Back-Up Alarm
3" Camlock Water Tank Drain Connection
2" Camlock w/25' Hydrant Fill Hose and Connection
Waterproof IP67 Rated Wireless Remote Control w/Display Screen Featuring Control for Inline 6" Vacuum Relief Tee w/Tether
Rear Tow Hooks
Hydrant Wrench
20 GPM @ 3,000 PSI CAT Pump Variable Water Flow, TRIPLEX Water Pump System
Debris Body Deflector
2 – 10" Dia. Stainless Steel Float Shutoff Balls
Digging Lance Storage
Vactor’s Emergency Stop at All Human Machine Interfaces
Vactor’s Safety Interlock System and Transfercase Shift Protection
12 Volt Plug-In Power Source at Control Stations
User Defined Control of Work Mode Operation
J1939 CAN Electrical Communication and Engine/Transmission/Vactor Interface – Includes Vactor Diagnostics and Warnings
Illuminated Curbside Control Station
Vactor E-Stop, Water Pump On/Off Control, Vacuum On/Off Control, and Optional Electric Vibrator Control
7" LCD Display of Engine RPM, Blower RPM, Vacuum Level, Pump Mode, and Dig Mode
Bluetooth Remote Service Connectivity
Solid State Electronic Control System
Exterior LED Lighting Illuminating Operator Control Work Area and Walk-In Cabinets
1,200 U.S. Gallon Water Capacity – Molded High Density Polyethylene Water Tanks with Anti-Siphon Fill
Rear Door Drain Port Cover – 3:00
Digging Lance Excavation Package w/Quick Connect Couplers
(2) 6' Long and (1) 4-1/2' Long 1/2" Dia. Galvanized Extensions with (1) Linear Trigger Handgun Shutoff
(1) Wireless Wrist Strap Emergency Stop w/Dig Lance Tether
Grounding Cable to Debris Body, Sub Frame, and Chassis
8" Inspection Port in Turret w/Ladder Access
Rear Door Splash Shield
QuietPak Acoustically Tuned Silencer Package
ISO-32 Hydraulic Oil – Ideal for Colder Weather – Hydraulic Alarm Temp Set at 165°F
Hydraulic Tank Shut-Off Valves for Ease of Service
High Pressure Wash-Down Gun w/Adjustable Spray Nozzle
2 Amber LED Clearance Markers
2 Red LED Clearance Markers – Passenger Side Rear and Driver Side Rear
3 Red LED Rear Mounted Identification Lights – Top of Rear Body
8" Vacuum Pipe Package – 1 x 80" 8" Dia. Dig Tube, 1 x 72" and 1 x 36" 8" Dia. w/Quick Clamps
Underbody Storage Tray
Rear Backup Camera with In-Cab Display
Aluminum Tool Tray – Driver Side Between Cabinet and Water Tank – 21"W x 24"D
Aluminum Tool Tray – Passenger Side Between Cabinet and Water Tank – 21"W x 24"D
Large Van Body Style Aluminum Water Pump Cabinet w/Foil Backed Insulation
Passenger Side Rear Mounted Electric Over Hydraulic Control Valves with Manual Override and Hand Pump
Rear Door Decant Valve – 6" Knife Valve w/Camlock, 6:00 Position
Lube Manifold for L/R Rear Door Cylinder Hinge, L/R/M Rear Door Hinge, Boom Bearing, Liquid Level Indicator, Upper and Lower Body Hoist Cylinder Pins, and Boom Cylinder Pins
Debris Body Vibrator – Electric
Air Purge
Water Heater – 800,000 BTUs – 12V
9' Extendable Boom, 320° Rotation w/Removable Turret Box – 26.5' Full Extension Boom Reach from Center of Turret Box
Remote Corded Pendant
Anti-Freeze Tank and Plumbing
Cold Weather Package – Insulation of All Exposed Water Lines, Heating of Water Pump Cabinet
Waterproof, Rechargeable, Wireless Handheld LED Spot Light w/12V Charger and Plug
Revolving LED Beacon – Front Federal Signal SLR Series, Amber
Revolving LED Beacon – Rear Federal Signal SLR Series, Amber
(2) Boom Worklights
Work Zone Lighting – (6) LED Lights
Aluminum Toolbox – Passenger Side, 24"H x 36"W x 24"D, Frame Mounted
Driver Side Van Body Style Vertical Aluminum Storage Cabinet w/Walk-In Access, Foil Backed Insulated w/Heater
2020 Vactor HXX-QX Hydro Excavator on Western Star 4700 with Detroit DD13 engine, 15 cu yd capacity, 59200 miles. Features include 9' extendable boom, robust blower, dual filtration, and advanced controls for efficient operation.
Imperial
| VIN | 5KKMAXDV3LPLR5279 |
| Year | 2020 |
| Chassis Miles | 59200 |
| Engine Hours | 6401 h |
| Blower Hours | 2766 h |
| Engine Make | Detroit |
| Engine Model | DD13 |
| Transmission | Eaton Fuller - Manual |
| Debris Body Capacity (Cubic Yards) | 15 |
| Boom | 9 ft |
| Boom Type | Extendable |
Vactor HXX-QX Vacuum Excavator
Vactor’s Patent Pending DigRight Technology
Rear Door Prop and Debris Body Prop
15 Cubic Yard Debris Body
Robuschi RBDV 145 Blower – 6,200 CFM – 28" Hg
Mud Flaps
Sealed Electrical System w/Weather Tight Connectors
Dual Cyclone Filtration
Hydraulically Raising Debris Body w/50° Dump Angle and Double Acting Debris Body Lift Cylinder
2" Y-Strainer on Water Tank Fill
1/4" Application Specific EX-TEN Steel Construction
Heavy Duty OMSI Transfercase
2 – 19.65" Dia. Washable Polyester Final Filters w/Foam Prefilter – 5 Micron Filtration
Hydraulic Boom Extend/Retract, Up/Down, and Rotation Controls via Wireless Remote, Manual Valves, and Optional Pendant
Electronic Low Water Light and Alarm
3/4 Opening Flat Rear Door w/Hydraulic Open/Close and Lock
8" ID Vacuum System
1/2" x 75' Water Digging Hose on Manual Extend/Spring Retract Reel w/Retract Speed Control
8" Air-Operated Vacuum Relief Valve
Electronic Back-Up Alarm
3" Camlock Water Tank Drain Connection
2" Camlock w/25' Hydrant Fill Hose and Connection
Waterproof IP67 Rated Wireless Remote Control w/Display Screen Featuring Control for Inline 6" Vacuum Relief Tee w/Tether
Rear Tow Hooks
Hydrant Wrench
20 GPM @ 3,000 PSI CAT Pump Variable Water Flow, TRIPLEX Water Pump System
Debris Body Deflector
2 – 10" Dia. Stainless Steel Float Shutoff Balls
Digging Lance Storage
Vactor’s Emergency Stop at All Human Machine Interfaces
Vactor’s Safety Interlock System and Transfercase Shift Protection
12 Volt Plug-In Power Source at Control Stations
User Defined Control of Work Mode Operation
J1939 CAN Electrical Communication and Engine/Transmission/Vactor Interface – Includes Vactor Diagnostics and Warnings
Illuminated Curbside Control Station
Vactor E-Stop, Water Pump On/Off Control, Vacuum On/Off Control, and Optional Electric Vibrator Control
7" LCD Display of Engine RPM, Blower RPM, Vacuum Level, Pump Mode, and Dig Mode
Bluetooth Remote Service Connectivity
Solid State Electronic Control System
Exterior LED Lighting Illuminating Operator Control Work Area and Walk-In Cabinets
1,200 U.S. Gallon Water Capacity – Molded High Density Polyethylene Water Tanks with Anti-Siphon Fill
Rear Door Drain Port Cover – 3:00
Digging Lance Excavation Package w/Quick Connect Couplers
(2) 6' Long and (1) 4-1/2' Long 1/2" Dia. Galvanized Extensions with (1) Linear Trigger Handgun Shutoff
(1) Wireless Wrist Strap Emergency Stop w/Dig Lance Tether
Grounding Cable to Debris Body, Sub Frame, and Chassis
8" Inspection Port in Turret w/Ladder Access
Rear Door Splash Shield
QuietPak Acoustically Tuned Silencer Package
ISO-32 Hydraulic Oil – Ideal for Colder Weather – Hydraulic Alarm Temp Set at 165°F
Hydraulic Tank Shut-Off Valves for Ease of Service
High Pressure Wash-Down Gun w/Adjustable Spray Nozzle
2 Amber LED Clearance Markers
2 Red LED Clearance Markers – Passenger Side Rear and Driver Side Rear
3 Red LED Rear Mounted Identification Lights – Top of Rear Body
8" Vacuum Pipe Package – 1 x 80" 8" Dia. Dig Tube, 1 x 72" and 1 x 36" 8" Dia. w/Quick Clamps
Underbody Storage Tray
Rear Backup Camera with In-Cab Display
Aluminum Tool Tray – Driver Side Between Cabinet and Water Tank – 21"W x 24"D
Aluminum Tool Tray – Passenger Side Between Cabinet and Water Tank – 21"W x 24"D
Large Van Body Style Aluminum Water Pump Cabinet w/Foil Backed Insulation
Passenger Side Rear Mounted Electric Over Hydraulic Control Valves with Manual Override and Hand Pump
Rear Door Decant Valve – 6" Knife Valve w/Camlock, 6:00 Position
Lube Manifold for L/R Rear Door Cylinder Hinge, L/R/M Rear Door Hinge, Boom Bearing, Liquid Level Indicator, Upper and Lower Body Hoist Cylinder Pins, and Boom Cylinder Pins
Debris Body Vibrator – Electric
Air Purge
Water Heater – 800,000 BTUs – 12V
9' Extendable Boom, 320° Rotation w/Removable Turret Box – 26.5' Full Extension Boom Reach from Center of Turret Box
Remote Corded Pendant
Anti-Freeze Tank and Plumbing
Cold Weather Package – Insulation of All Exposed Water Lines, Heating of Water Pump Cabinet
Waterproof, Rechargeable, Wireless Handheld LED Spot Light w/12V Charger and Plug
Revolving LED Beacon – Front Federal Signal SLR Series, Amber
Revolving LED Beacon – Rear Federal Signal SLR Series, Amber
(2) Boom Worklights
Work Zone Lighting – (6) LED Lights
Aluminum Toolbox – Passenger Side, 24"H x 36"W x 24"D, Frame Mounted
Driver Side Van Body Style Vertical Aluminum Storage Cabinet w/Walk-In Access, Foil Backed Insulated w/Heater
